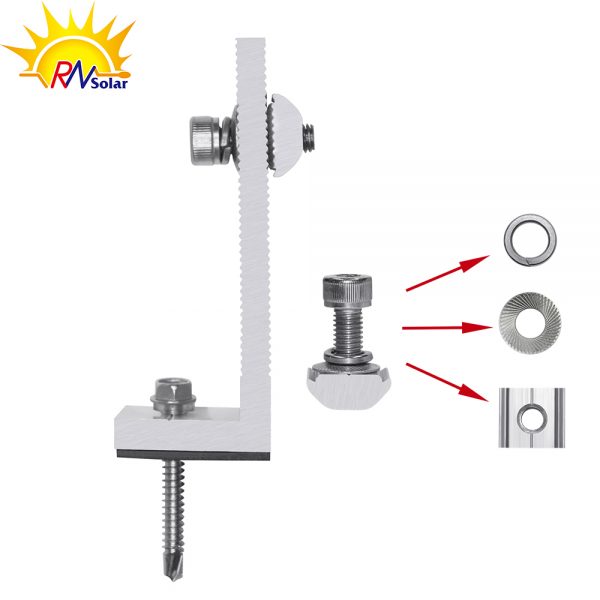

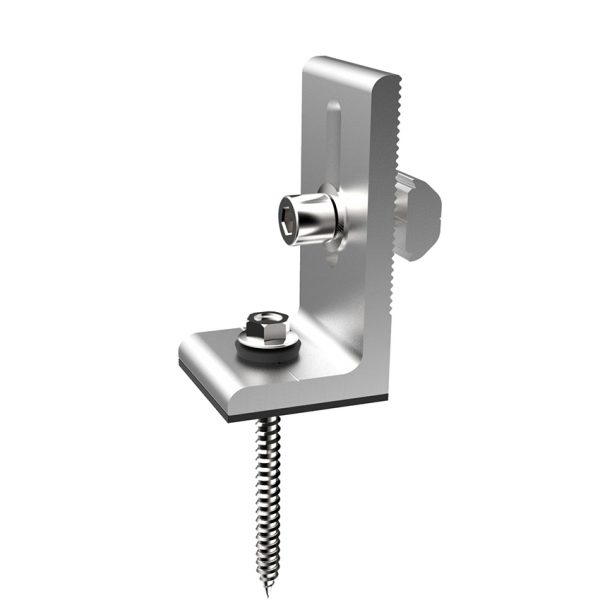

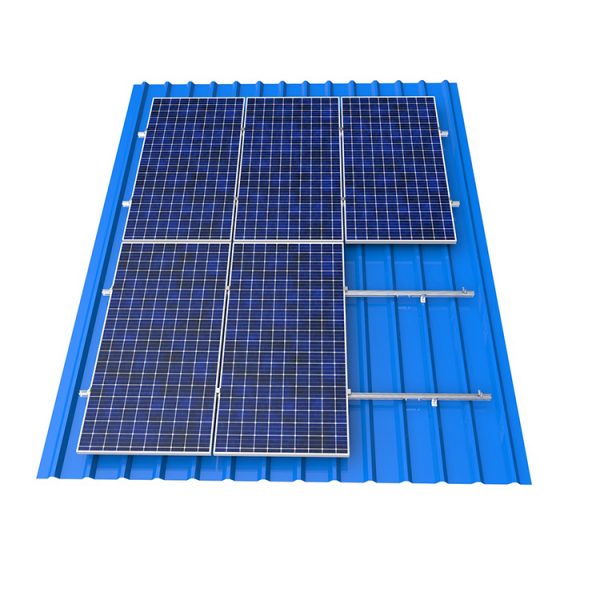

RN-7-SW-3 L-Foot Roof Mounting System RN-7-SW-3 L-Foot Roof Mounting System applicable for trapezoidal metal roof or corrugated fibre cement roof,various types of bolt applicable for wooden or steel roof beam. ◊ Technical Parameter Installation site Corrugated Metal Roof/Corrugated fibre cement roof Material SUS304/AL6005-T5 Tilt Angle Parallel to exsting roof Wind Load ≦60m/s Roof Type Trapezoildal , Corrugated Fibre Cement Snow Load ≦1.5KN/㎡ Module Orientation Portrait Warranty 10 Years Landscape Design Standard AS/NZ 1170,JIS C8955 2017,DIN 1055 ,IBC 2006 ◊ Component RN7-SW-3-A001 RN7-SW-3-A002 RN7-SW-3-A003 Rail-A Rail Splice Mid Clamp End Clamp ◊ Installation ◊ Project Case
