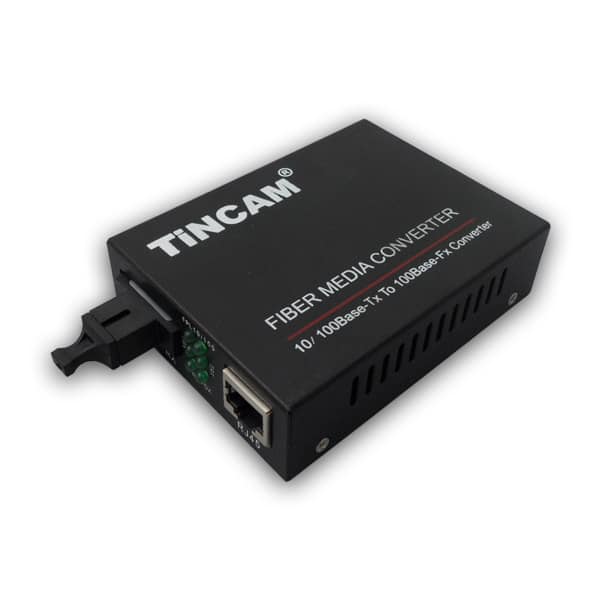

الوصف Features Support IEEE802.3u.100BASE-T and 100 BASE-FL protocol Support full duplex or half duplex network communication, and with auto-negotiation capability Supports the transmission of long packets of VLANs Support for IEEE802.1Q protocol switch products to match the use Support LINK LOSS link remote pre-alarm function Modular design, plug and play, both stand-alone use, can also be used in 14-slot rack Automatically adapt to 10Mbps and 100Mbps environment, easy to upgrade the network RJ45 port support through or cross automatic recognition function (AUTO-MDIX) REMOTE PAUSE function ensures the integrity of packet transmission With broadcast storm protection, balance flow, isolation conflicts and detection errors and other functions; Meet the electromagnetic interference standard FCC Part15 Class A and CE Mark safety regulations Parameters Standard Protocol IEEE 802.3, IEEE 802.3u, IEEE 802.3d, IEEE 802.3x, IEEE 802.3Q Band Width RJ 45 Port 10/100M Optical Port 1.25G Operation Mode Full /Half duplex mode,with auto-negotiation capability Connectors UTP RJ45 Fiber connector SC/FC/ST LED Indicators 1000M,100M, FX/ACT, TP/ACT , PWR,FDX. UTPCable Cat5 UTP （within 100m） Fiber Cable 9/125μm(the max distance up to 20 -120km) 50/125,62.5/125μm(the max distance up to 2km) Power Supply External power supply 5V, 2A Internal power supply DC-48V, AC110-250V/50Hz Power Consumption ≤5W Working Environment Work Temperature 0℃~50℃ Storage Temperature -40℃~70℃ Humidity 5%~90% non-condensing MTBF (Hours) >30000 Size and Weight structure Dimensions(mm) Weight External power supply 94mm*70mm*25mm 0.4 kg Internal power supply 140mm*110mm*30mm 0.8kg Socket Card 157mm*128mm*31mm 1.0kg Certification FCC Part 15 , Class A, RoHS and CE Mark Name Definition Specification PWR Indicator of power supply ON when the power supply is turned on and in normal working status FX/ACT Optical interface status indicator Bright : optic fiber cable is connected well, but no data transmission Blinking: when receiving data TP/ACT Ethernet interface status indicator Bright : twisted pair is connected well, but no data transmission Blinking: when receiving data 100M Rate indicator Bright: The data is being transmitted: 100M Off: no data is being transmitted 1000M Rate indicator Bright: The data is being transmitted: 1000M Off: no data is being transmitted FDX Ethernet interface Full / half duplex Signal indicator Bright: The network interface operates as full duplex OFF, The network interface operates as half duplex Size Size and Weight structure Dimensions(mm) Weight External power supply 94mm*70mm*25mm 0.4 kg Internal power supply 140mm*110mm*30mm 0.8kg Socket Card 157mm*128mm*31mm 1.0kg
