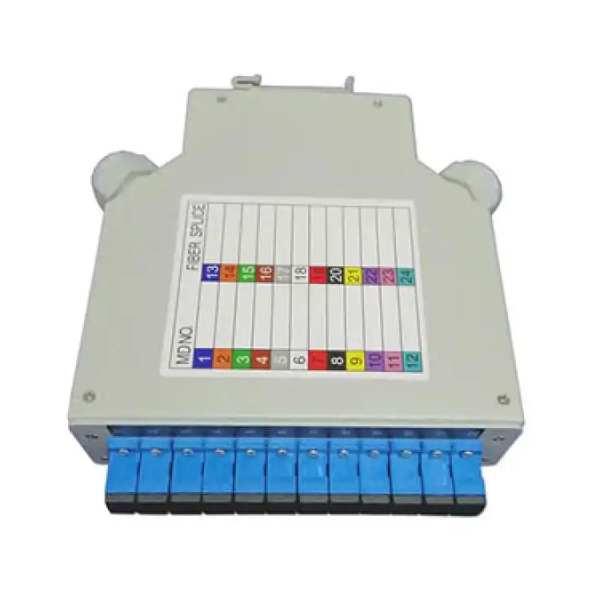

الوصف DIN rail mounted fiber optic terminal box DIN-01 Description: DIN-01 is a DIN rail mounted fiber optic terminal box that used for fiber connection and distribution. It is made of aluminum, inside with plastic splice tray, light weight, good to use. Features: Reasonable design, aluminum box, light weight Electrostatic powder painting, grey or black color ABS plastic blue splice tray, rotatable design, compact structure Max. 24 fibers capacity FC, ST, LC, SC … different adapter port available DIN rail mounted application Specification: Model Dimension Material Adapter port Splicing capacity Cable port Application DIN-01 133×136.6x35mm Aluminum 12 SC simplex Max. 24 fibers 2 ports DIN rail mounted Accessories: Item Name Specification Unit Qty 1 Heat shrinkable protection sleeves 45*2.6*1.2mm pcs As per using capacity 2 Cable tie 3*120mm white pcs 2 Drawings: (mm) Cable management drawings: Fiber optic cable Stripping out optical fiber Fiber optic pigtail Splice tray Heat shrinkable protection sleeve
