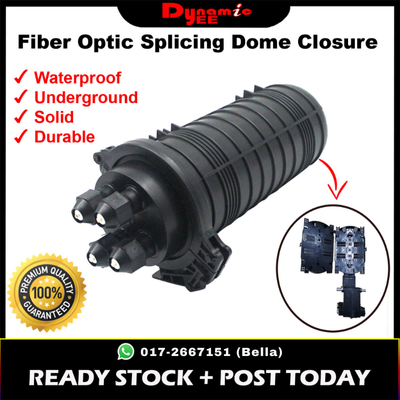

Fiber Optic Splice Mechanical Closure Dome 12/24/48/96CORE FJ301

Feature – May be used for cut, uncut and taut sheath applications. – It May be used for all fiber optic cable – Sheath retention & central strength member fasten system included. – Ribbed closure construction and lightweight plastic provides strength and resistance to chemical and U. V attack – Installation and re-entry with a minimum of tools – Re-enterable and reusable – All hardware is included – Protection Class: IP68 – RoHS compliance Application – Combination fiber organizer and cable closure designed to provide environmental and mechanical protection for joints for all common types of fiber optic cables. – Underground, Aerial, Vault, Pole Mounting and Wall Mounting Variation: 12/24/48/96 cores Seal way: Mechanical Seal Size: 435*160mm Weight: 1.75KG The use of high-strength engineering plastic shells that can endure harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes. Use reusable components to open the seal in order to ensure a good airtight, waterproof performance. Does not require special tools, easy to install and open the duplicate. The scope of application: aerial, direct-buried, wall-mounting, duct-mounting The application of temperature: -40c~65c
