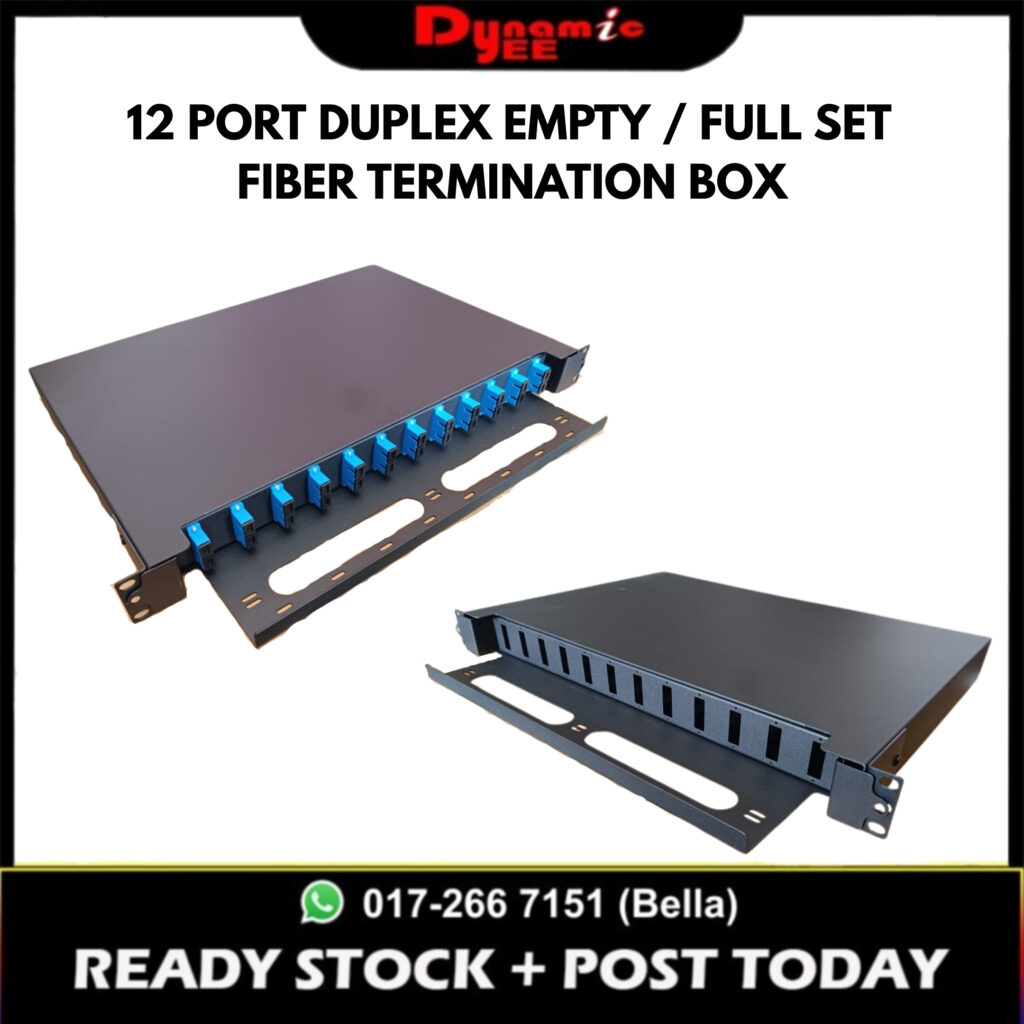

12 PORT DUPLEX OPTICAL FIBER TERMINATION BOX SC PORT FULL SET / EMPTY PULL TYPE – TBR502

TBR502 – 12 Port Fiber Termination Box (Pull Type Rack Mount) TBR502-12P Pull-Type Fiber Termination Box – Duplex Fiber Patch Panel The TBR502 12-Port Fiber Termination Box is designed for medium-density fiber optic distribution, termination, and cable management in telecom infrastructure and fiber optic network installations. The pull-type sliding tray mechanism allows easy access to the splice tray and fiber connections, enabling fast installation and maintenance. Built with heavy-duty cold-rolled steel, the enclosure provides strong mechanical protection for fiber connections and ensures long-term reliability. This model supports duplex fiber adapters only. Product Variants TBR502-12P-PULLTYPE-DPL-EMPTY Empty panel Adapters not included TBR502-12P-PULLTYPE-DPL-SCPORT Panel with SC duplex adapters & pigtails installed Key Features ✔ 12-Port Fiber Termination Panel✔ Pull-Type Sliding Drawer Design✔ Standard 19-inch Rack Mount Installation✔ Integrated Fiber Splice Tray System✔ Durable Cold-Rolled Steel Enclosure✔ Supports Duplex Fiber Adapters Only✔ Organized Fiber Routing and Cable Management Product Specifications Item Specification Model TBR502 Port Capacity 12 Ports Adapter Type Duplex Fiber Adapters Mounting 19" Rack Mount Material Cold-Rolled Steel Structure Pull-Type Sliding Tray Package 1 Unit Only Product Dimensions (All TBR models share the same enclosure size) Width: 48 cm Depth: 44 cm Inner Depth: 36.5 cm Internal Tray Length: 37 cm Internal Width: 30.5 cm Maximum Open Length: 65.5 cm Applications FTTH Fiber Network Deployment Telecom Rack Cabinets Fiber Distribution Systems Optical Distribution Frames Enterprise Fiber Infrastructure
